Fire Tube Boilers: Erection, Relocation, Reconditioning & Repair

Rajinder Welding & Mechanical Work, in association with Vikas & Naseer Sons LLP, Goa, brings over three decades of specialized expertise in Fire Tube Boiler systems. Under the leadership of Mr. Rajinder Kumar Rana, we offer comprehensive boiler services across India, including New Boiler Erection, Complete Boiler Relocation, and In-situ Reconditioning & Repairs.

Whether you require a turnkey erection of a new shell boiler or need to breathe new life into an aging system, our team—backed by the engineering prowess of Boiler Pulse—delivers safety, efficiency, and longevity.

Our Fire Tube Boiler Expertise

Fire Tube Boilers are the workhorses of numerous industries, known for their robustness and ability to handle fluctuating load demands. We ensure these critical assets operate at peak performance through three core service verticals:

1. Erection of New Fire Tube Boilers

We undertake complete turnkey erection of new Fire Tube Boilers (including Smoke Tube and Shell-type boilers) for industries such as textiles, food processing, pharmaceuticals, and chemical plants.

Our Erection Scope Includes:

Shell Positioning & Alignment: Precise placement and leveling of the boiler shell on foundation chairs.
Tube Installation & Expansion: Hydraulic or pneumatic expansion of smoke tubes, ensuring leak-proof joints.
Front & Rear Smoke Box Assembly: Fabrication and fitting of smoke boxes with airtight sealing.
Mounting & Fittings Installation: Safe installation of all mandated mountings (Safety valves, Water level controllers, Pressure gauges, etc.).
Piping & Valve Manifolds: Installation of steam, feed water, and blow-down pipelines up to the first valve.

2. Relocation of Existing Boiler Jobs

As industries evolve, so do layout requirements. We specialize in the safe dismantling, shifting, and re-erection of complete Fire Tube Boiler systems. Our relocation service minimizes downtime and ensures the boiler is reinstated with original (or improved) performance standards.

Our Relocation Process:

Site Survey & Engineering: Assessing the new location and planning the lifting strategy.
System Dismantling: Systematic disconnection of electrical, piping, and brickwork, with tagging for easy re-assembly.
Heavy Lifting & Transport: Safe rigging and transportation of the shell and components.
Re-erection & Alignment: Precision re-installation at the new site.
Re-commissioning: Full testing and steam trials to validate performance.

3. Complete Reconditioning & Repairs

We restore old, inefficient, or condemned boilers to "like-new" condition. Our reconditioning services are a cost-effective alternative to replacement, significantly extending the lifespan of your asset.

Reconditioning Services Include:

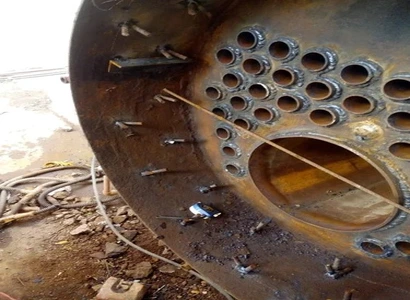

Tube Replacement (Retubing): Complete removal and replacement of worn-out or leaking fire tubes.

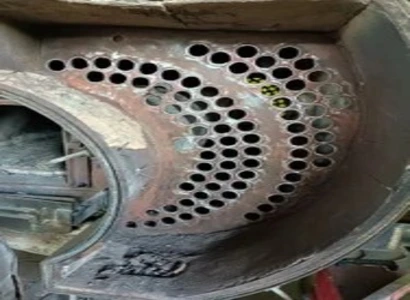

End Plate & Tube Sheet Repairs: Buildup welding, machining, or replacement of damaged tube sheets.
Shell Repair: Rectification of shell distortion, bulging, or pitting (as per boiler code standards).
Smoke Box & Casing Renewal: Fabrication and replacement of corroded smoke boxes and external cladding.
Refractory & Insulation Work: Reinstating brickwork and insulation to minimize heat loss.

Comprehensive Supply of Parts

To support our erection and repair services, we function as a leading manufacturer and supplier of both Pressure and Non-Pressure parts for all makes and models of Fire Tube Boilers.

Pressure Parts (I.B.R. / Non I.B.R.)

Fire Tubes: Seamless/ERW tubes in specified grades (SA 178, SA 192, etc.).
End plates (Tube Sheets): Precision-cut and drilled plates for front and rear tube sheets.
Furnace Tubes: Corrugated or plain furnace tubes for internal furnace boilers.
Turn Boxes & Reversing Chambers: Fabricated chambers for multi-pass boilers.
Stay Tubes & Stay Bolts: Solid or hollow stays to support flat surfaces.
Manhole & Mudhole Fittings: High-pressure sealing doors and clamps.

Non-Pressure Parts

Smoke Box Doors & Hinges: Heavy-duty fabricated doors with sealing arrangements.
Cladding & Casing Sheets: Insulated and plain sheets for boiler outer covering.
Cladding & Casing Sheets: Structural supports for shell mounting.
Gaskets & Packing Materials: High-temperature graphite and asbestos-free gaskets.
Insulation Materials: Ceramic fiber, Rockwool, and Glass wool for thermal efficiency.
Baffle Plates: To direct flue gas flow for optimal heat transfer.

Why Choose Us for Your Fire Tube Boiler Needs?

30+ Years of Legacy: Established expertise under the leadership of Mr. Rajinder Kumar Rana, serving Meerut, Goa, and pan-India.
End-to-End Solutions: From a single tube replacement to complete greenfield boiler erection.
In-House Fabrication: Capability to manufacture critical spares, ensuring faster turnaround times.
Code Compliance: All repair and erection work adheres to IBR and statutory regulations.
Pan-India Service: Operative through our headquarters in Meerut (U.P.) and LLP in Goa.

Industries We Serve

Textile Processing Houses
Rice Mills & Food Processing Units
Chemical & Pharmaceutical Industries
Solvent Extraction Plants
Rubber & Tyre Manufacturing
Hospitals & Institutional Complexes

Get in Touch

Ensure the reliability and efficiency of your steam generation system. Whether you need to erect a new boiler, relocate an existing one, or recondition a current unit, Rajinder Welding & Mechanical Work is your trusted partner.
